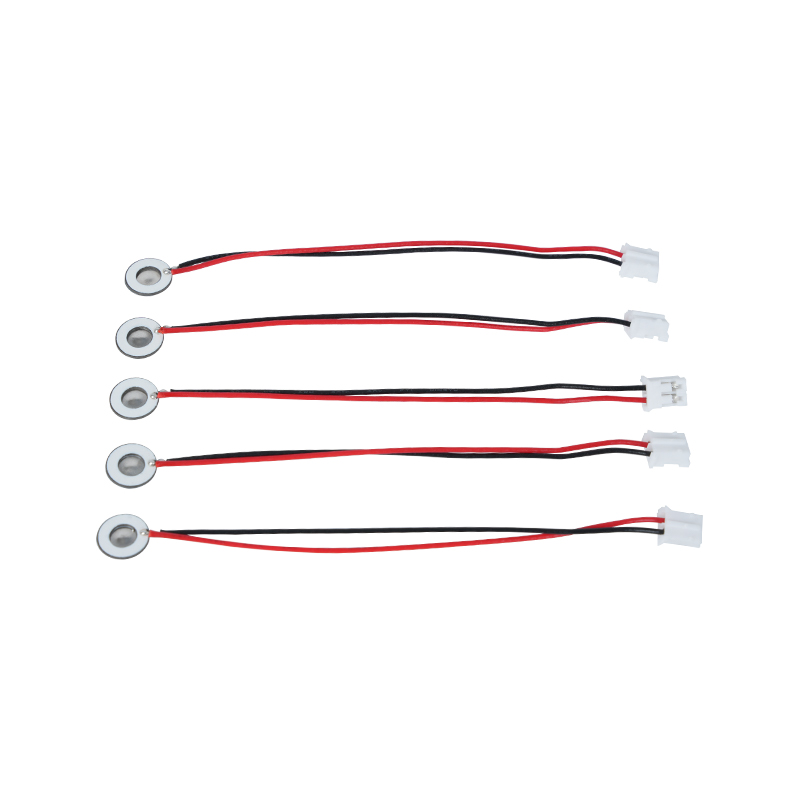

Small size Φ8mm inhalable medical Mesh nebulizer disc is a high efficiency nebulizer accessory designed for medical nebulizer treatment, using advanced mesh (Mesh) technology, it is able to nebulize the liquid medication into fine particles, which is easy for patients to inhale through the respiratory tract. With a diameter of only 8mm, the nebulizer disc is compact enough to be used in portable nebulizers and small medical devices and is especially suitable for nebulization treatment of children and the elderly. The unique design ensures precise control of the amount of drug nebulized, making the drug evenly distributed during the nebulization process and enhancing the therapeutic effect. The design of a small nebulizing volume can reduce the waste of drugs, save the amount of drugs used, and improve the efficiency of treatment. The material of this nebulizer tray is safe, non-toxic, and meets medical standards.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 8-220KSDC160P1.8 | Φ8*0.05-316L | Φ8*Φ4.0*0.55 | Cylindrical | 220k±10 | ＜300 | 850±20% | 3.0-5.0 | 1.25±0.3 | 3.5 | ＜ 1600 | 2.0 ± 0.5 | 0.2- 0.4 | 1.8 | Medical Mesh Micro Mesh Nebulizer Tablets |
Medical Mesh Nebulizer Tablets are precision components used in medical devices to convert medications or solutions into tiny aerosol particles for the treatment of various respiratory disorders such as asthma, and chronic obstructive pulmonary disease (COPD), etc. by inhalation.
The design and material selection of the nebulizer sheet is critical to ensure effective drug delivery and patient comfort.
The stainless diaphragm sheet is punched with thousands of tiny 2-3μm mesh holes in the steel sheet through laser drilling technology in a precision laser process, and then it is tightly bonded with the piezoelectric ceramic round sheet, which converts the resonant frequency of the piezoelectric sheet into high-frequency vibration energy through the output signal of the PCB driver board, and rapidly breaks down the liquid medication into fine aerosol particles. These droplets are also called median particle size, when the median particle size D50 percentage reaches >60% or more, the particles will be small enough to be able to reach deep into the lungs to the surface of the alveoli with breathing, thus improving the absorption efficiency of the medication and the therapeutic effect. Medical Mesh micro mesh nebulizer sheet mainly has several forms exist, stainless steel micro mesh nebulizer sheet, nickel palladium medical nebulizer sheet, PI polymer medical nebulizer sheet, and so on. All of the above are through the piezoelectric ceramic vibration energy conversion to achieve the atomization effect.
In 2012, at the request of Shanghai Modern Pharmaceutical Company, our company took the lead in launching the research of nebulized drugs with medical micro-net <5μm D50 percentage greater than 50%, which became the new star of medical micro-net nebulized tablets industry. After more than ten years of continuous development and accumulation, and continuous improvement of laser equipment and perforation technology, we have finally made the median particle MMAD <3 μm, D50 volume distribution ratio of >75% to become a daily mass-production product, <3 μm volume distribution of more than 90%, and the stability is high, the nebulization and the output of the particles is smooth and reliable. 2020 breakthrough in the medical MMAD: 2.5 μm of the technical bottleneck and lock the 2.5 μm of the technology. In 2020, we will break through the bottleneck of medical MMAD: 2.5 μm technology and lock 2.5 μm into mass production and have the industry-leading laser photolithography mesh atomization sheet technology.
The company has a strong technical team, professional and good production process control procedures, and a strict quality control system to ensure the quality control of the product production process, which can be required by the customer atomization rate and median particles have very good control ability, to provide customers with small particles of large atomization amount of high-quality products and stable and reliable performance. 2.5 ~ 3.0um medical Meesh atomizer sheet project and domestic and foreign A number of well-known enterprises become partners. Such as Yuyue, Xi'en, Buchele, coffee, and other well-known brands in China, Europe, and the United States. Japan, Korea, France, Australia, Italy, Argentina, and other extensive customer groups.
Our 16mm medical Mesh nebulizer tablets, through the U.S. FDA certification, the company's production of medical inhalable piezoelectric nebulizer series of products have passed the strict export standards and various certifications:
Our medical inhalable piezoelectric nebulizer series products have passed strict export standards and certificates, such as the latest 223 certificates of REACH of EU, CP65 of California, and ROHS reports.
Our company has passed GB/T 19001-2016/ISO9001:2015 quality management system certification, registration number: 054721Q00604R0S.
Passed GB/T24001-2016/ISO 14001:2015 Environmental Management System Certification, Certificate No. : 38523EDH64FR0S Passed BG/T45001-2020/ISO 45001:2018 Occupational Health and Safety Management System Certification, Certificate No.: 38523S26LOJROS, has several invention patents and Utility model patents.
