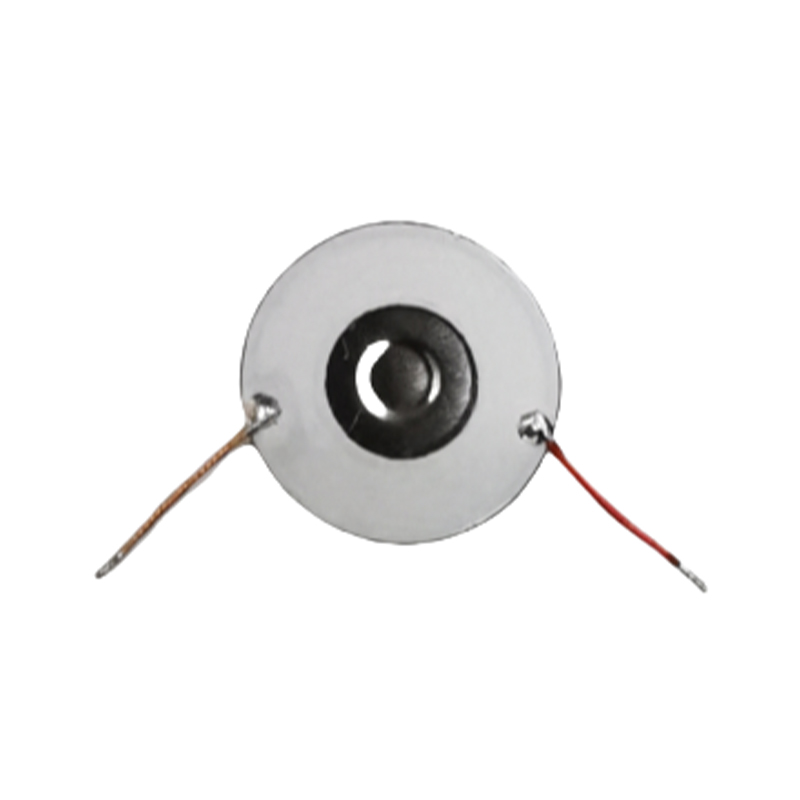

The 10mm atomizer disc is a miniature and small function special atomizing spray disc, which is widely used in medical inhalation nebulizers, nose washers, eye moisteners, portable beauty devices, mouth spray refreshing sprays, aromatherapy humidifiers, toy humidifiers, and other devices. Adopting a stainless steel micro mesh nebulizer disc with durability and corrosion resistance, it can efficiently atomize water or medicinal liquid into fine particles, ensuring a more even and comfortable nebulizing effect. The atomizing disc is especially suitable for low-power and low-energy consumption equipment, which can providea stable atomization effect, effectively reduce energy consumption, and prolong service life. The fine micro-mesh structure makes the nebulized particles more delicate and can penetrate deep into the respiratory tract, eyes, or nasal cavity.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 10-160KSDH60P2.5 | Φ10*0.05 | Φ10*Φ5.0*0.6 | Cylindrical / Convex | 160k±10 | ＜300 | 1500 | 3.0-5.0 | 1.25±0.3 | 8 | 600 | 2.5 ± 0.5 | 2.5 | 1.5 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
