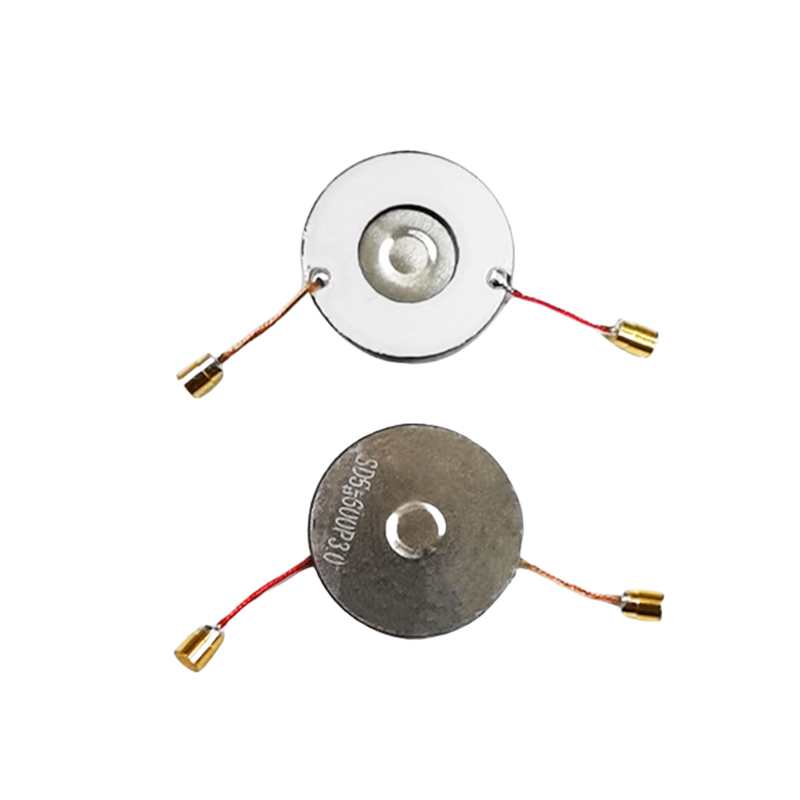

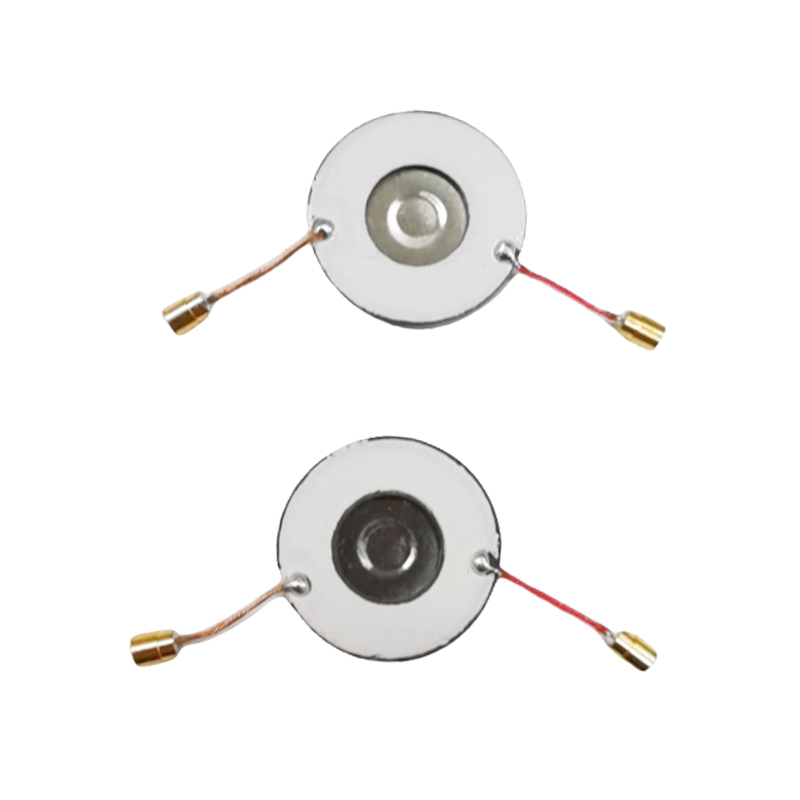

12mm nebulizer tablets are widely used in medical inhalation nebulizers, medical nose washers, electronic smoking cessation devices, eye moistening devices, mouth freshening sprayers, car humidifying and perfuming devices, home humidifier, and other nebulizers, spray tablets are designed with stainless steel micro mesh nebulizer discs with the characteristics of small power and low power consumption. Atomizing sheet through the laser precision microporous technology, the liquid will be uniformly atomized into a fine mist, suitable for a variety of atomizer equipment, especially in electronic smoking cessation devices, cleaning and rinsing nasal health, moist eye protection to prevent dry eyes, electronic smoking cessation, herbal atomization, humidification in addition to the odor and respiratory system of medical nebulizer treatment in the performance of the outstanding. The micromesh nebulizer disc is made of stainless steel, durable, and easy to clean. Low power consumption design makes it more energy efficient in use, extends the service life of the device, and reduces the dependence on batteries or power supply. 12mm small size makes it more compatible with a variety of types of nebulizers, which makes it easy for users to change their use. The overall structure is compact and easy to operate, suitable for home use and medical equipment applications.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 10-160KSDJ70P2.5 | Φ10*0.05 | Φ10*Φ5.0*0.6 | Cylindrical / Convex | 160k±10 | ＜300 | 1500 | 3.0-5.0 | 1.25±0.3 | 10 | 700 | 2.5 ± 0.5 | 4 | 1.5 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
