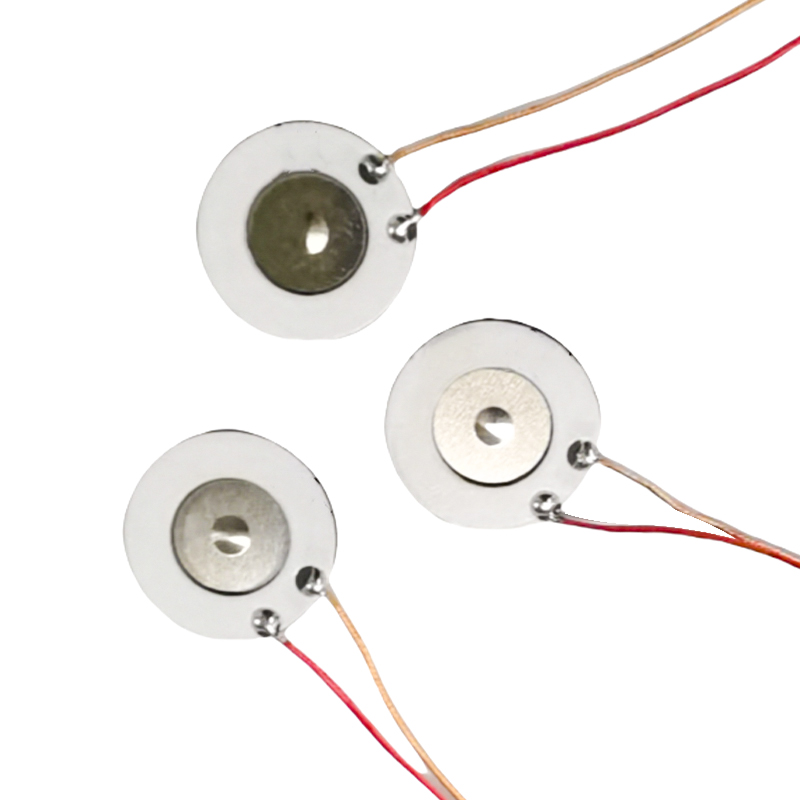

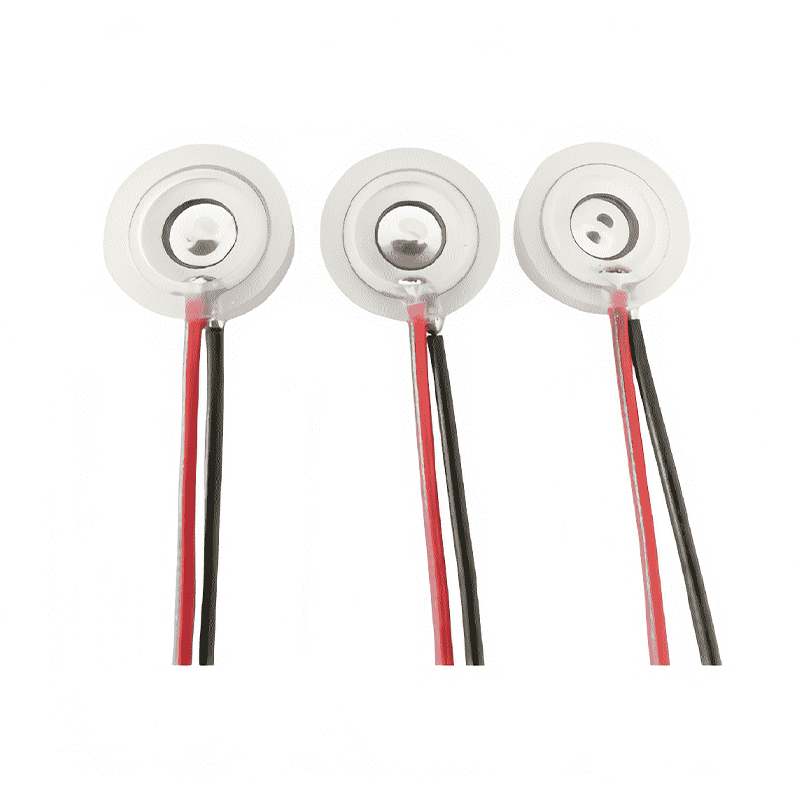

The 12mm micro mesh atomizing disc can be applied to hair comb essential oil, humidifier, toys, fans, atomizing aromatherapy, pet comb, car atomizing humidifier, medical inhalation atomizing disc, smoking cessation device atomization, it is a kind of core accessory designed for all kinds of humidifiers and nebulizers, which is widely used in the fields of air humidification, respiratory treatment and smoking cessation assistance. Through high frequency vibration, the water or medication is atomized into a fine water mist or medication mist to help moisten the air or help the medication enter the respiratory system directly. The nebulizer tablets are made of high quality materials, which are resistant to high temperature and corrosion, and can provide stable nebulizing effect. Nebulizer discs in medical nebulizers are commonly used for nebulizing treatments. As the nebulizer discs in smoking cessation devices, they help quitters gradually reduce nicotine dependence by nebulizing nicotine replacement.12mm size nebulizer discs are stably manufactured, suitable for a wide range of fogging equipment, easy to install and easy to use.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 12-145KSDF70P25 | Φ12*0.05 | Φ12*Φ6.3*0.6 | Cylindrical / Convex | 145K±10 | ＜300 | 1800 | 3.0-5.0 | 1.25±0.3 | 6 | 700 | 3.0 ± 0.5 | 0.6 | 1.6 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
