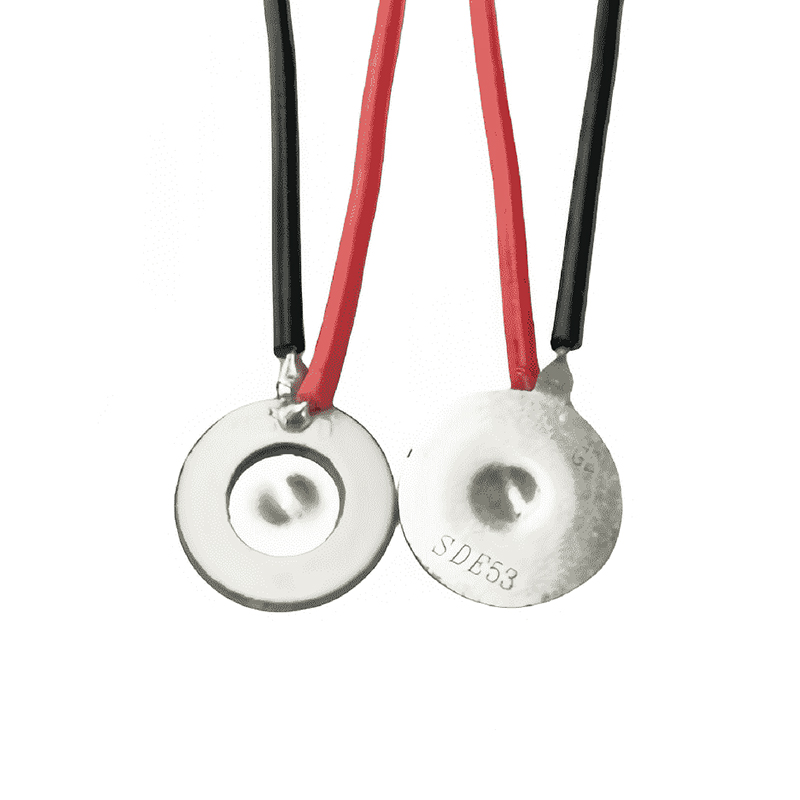

8mm microporous atomizing discs are used in pocket-sized small device atomizers, such as mouth sprays, nasal sprays, beauty salons, or products that require a tiny spraying area, and other atomization technology applications, and are a highly effective solution for air purification and fragrance diffusion. Through the precision design of the microporous atomization plate, the liquid fragrance or air freshener with very fine atomized particles sprayed out to form a uniform fine mist, quickly covers the surrounding environment. 8mm atomization disk due to its small size, is more suitable for small devices but also has enough atomization volume, to ensure that the atomization effect is more uniform, the diffusion speed is faster, and can quickly reach the fresh air, remove odors, more portable, more energy-saving and power saving. The more energy-saving and power-saving.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 8-220KSDH40P1.8 | Φ8*0.05-316L | Φ8*Φ4.0*0.55 | Cylindrical | 220k±10 | ＜300 | 850±20% | 3.0-5.0 | 1.25±0.3 | 8 | 400 | 2.0 ± 0.5 | 1.3 | 1.5 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
