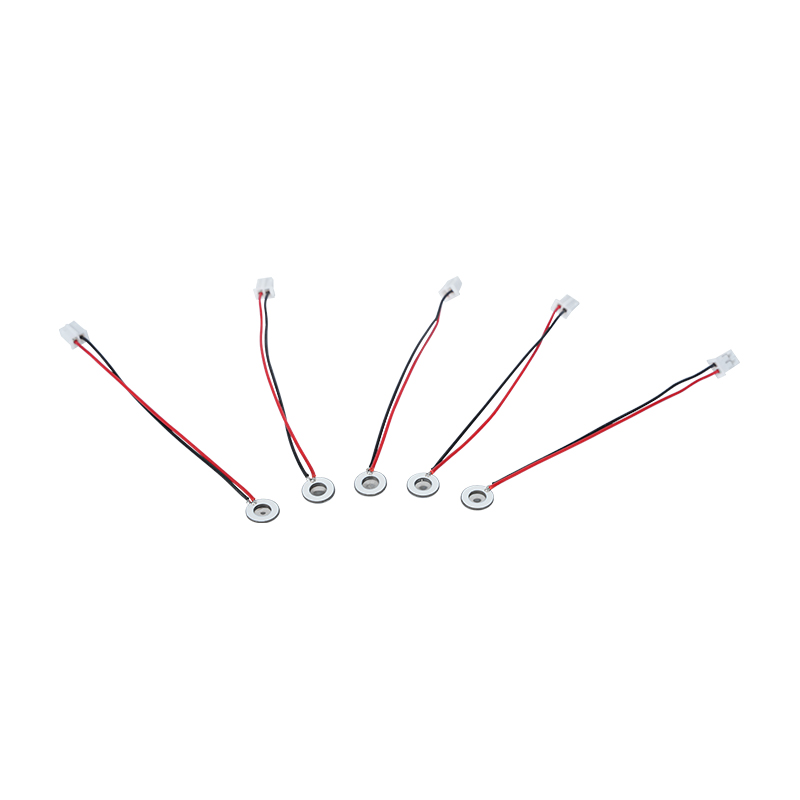

Φ8mm Micro Mesh Atomizing Disc is the atomizing element of the miniature humidifier eye moisturizer mouth spray freshener nose sprayer micro mesh atomizing disc mini device. Because of its compact size, Φ8mm design makes the device can be made smaller and more portable, suitable for a variety of scenarios, such as office fragrance spray, bedroom fragrance enhancement, or travel in the breath freshener spray, nose spray, essential oil perfumers, through the micro-network atomization technology, the water or medicine atomized into fine mist particles. The built-in atomizing humidifying sheet can effectively improve the atomization effect, ensuring the air is moist while keeping the room fresh. Silent design and easy operation, suitable for users who work in air-conditioned environments for a long time. The overall design is lightweight, energy-efficient, and easy to clean. And will be adapted to a variety of products that require atomization.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 8-220KSDJ30P1.8 | Φ8*0.05-316L | Φ8*Φ4.0*0.55 | Cylindrical | 220k±10 | ＜300 | 850±20% | 3.0-5.0 | 1.25±0.3 | 10 | 300 | 2.0 ± 0.5 | 2.5 | 1.5 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
