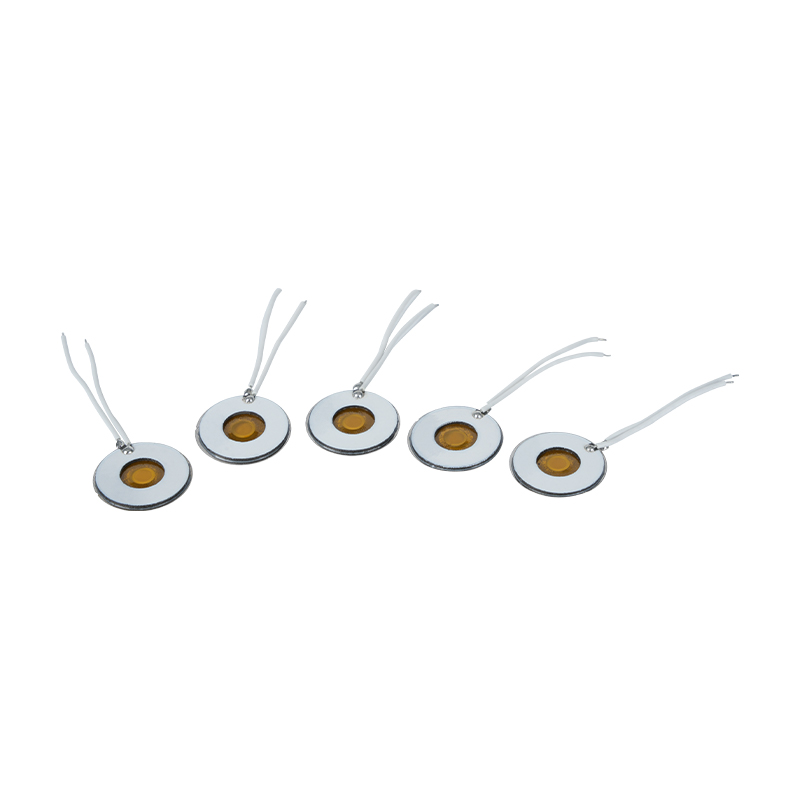

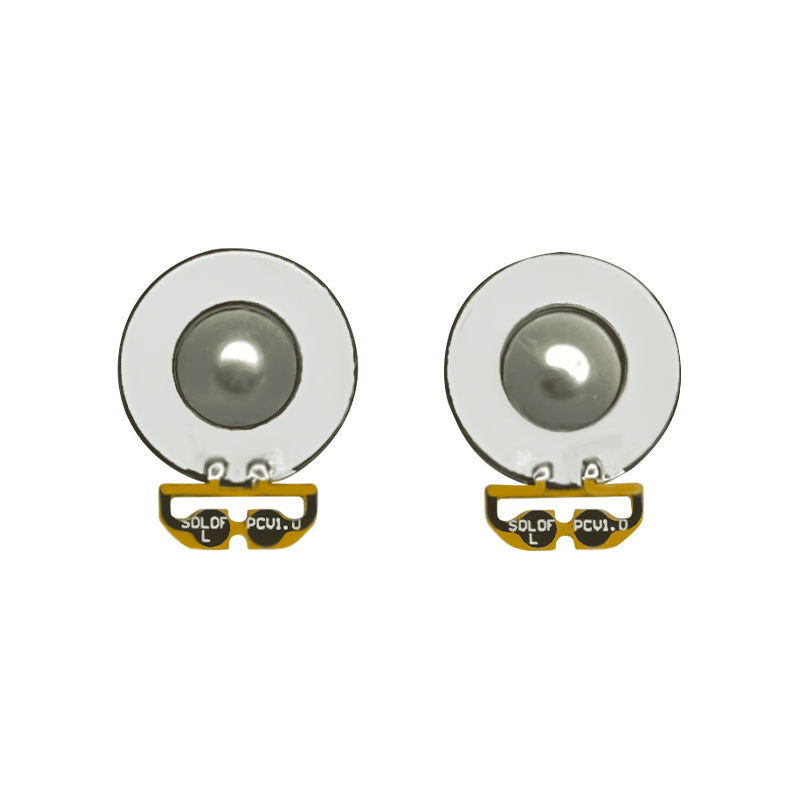

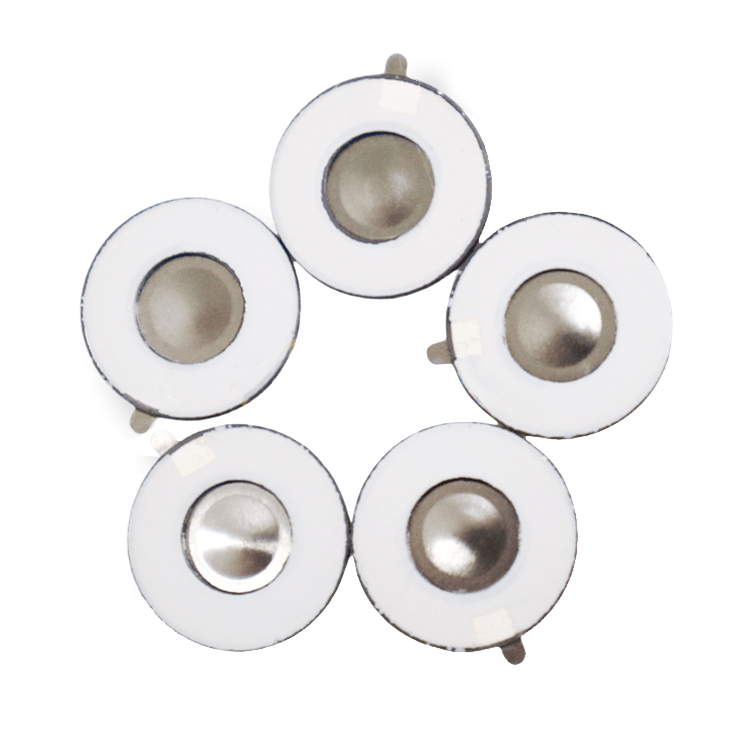

M16-108KHZ Polyimide (PI) Membrane Mesh Micro Mesh Nebulizer Tablet is one of the core components within the medical nebulizer, it is a high-performance, low power consumption, ROHS environmentally safe ultrasonic mesh nebulizer disc, which is mainly used for inhalation nebulization therapy. The device adopts polyimide PI membrane technology, combined with 108kHz ultrasonic frequency, which is able to precisely nebulize drugs and produce nebulized particles with a D50 of about 3μm, which effectively improves the efficiency of drug absorption and reaches the lungs directly. Its micro-network design ensures uniform atomized particles, no drug residue, reduces drug waste, while having good stability and high-temperature resistance, adapts to long-term use, long lif,e and low power consumption, the nebulizer's power consumption is only 1.0~1.5W, very low energy consumption makes it suitable for portable and long-time medical use.
16-108K MMAD＜4μm
Atomization Rate＞0.25ml/min
Polyimide (Polyimide) referred to as PI, is the best comprehensive performance of organic polymer materials, it has chemical stability and can withstand the corrosion of a variety of drugs, to ensure the long-term use of atomized tablets performance. Polymer PI membrane also has excellent thermal stability, long-term use temperature range -200~300°C, high insulation, environmental protection and non-toxicity, as a special engineering materials, widely used in aerospace microelectronics nano-liquid crystal separation membranes and other fields, it is not easy to be deformed in the process of high-temperature disinfection, to ensure that the product is reusable and safe, we use the laser technology for laser perforation of the PI We use laser technology to laser punch it, implant the PI film into the stainless steel and piezoelectric sheet between the use of piezoelectric ceramic ultrasonic technology so that the atomized liquid droplets through the PI film into 3 ~ 4μm atomized particles, used for medical nebulizer inhalation, the safety of the majority of users love, the main advantages of the nebulizer made of PI is not clogged, smooth and rounded inside the wall of the hole, the liquid is not residual, atomization is delicate and stable.
PI membrane nebulizer tablets can effectively prevent drug residues and reduce the risk of cross-contamination. The low energy consumption characteristics of polymer PI membrane nebulizer sheet are also reflected, PI membrane medical nebulizer sheet has low power consumption characteristics, prolonging the service life of the equipment. In the design, we use imported 316L material and a precise manufacturing process to ensure the high precision and consistency of our products. Our products have passed a number of international quality certifications and are widely recognized in the medical industry. In practical applications, PI film nebulizer sheets show excellent stability and durability. Whether it is a long period of continuous or intermittent work, its performance can be maintained at a stable level, and there is no significant performance degradation due to the increase in use time. This makes our PI film nebulizer sheets the first choice of many medical device manufacturers. In order to meet the needs of different customers, we are also continuously developing new categories of PI film nebulizer sheets. We believe that our PI film nebulizer sheets will play a more important role in the medical field in future development. We also look forward to working with more partners to jointly promote the development of medical technology.
