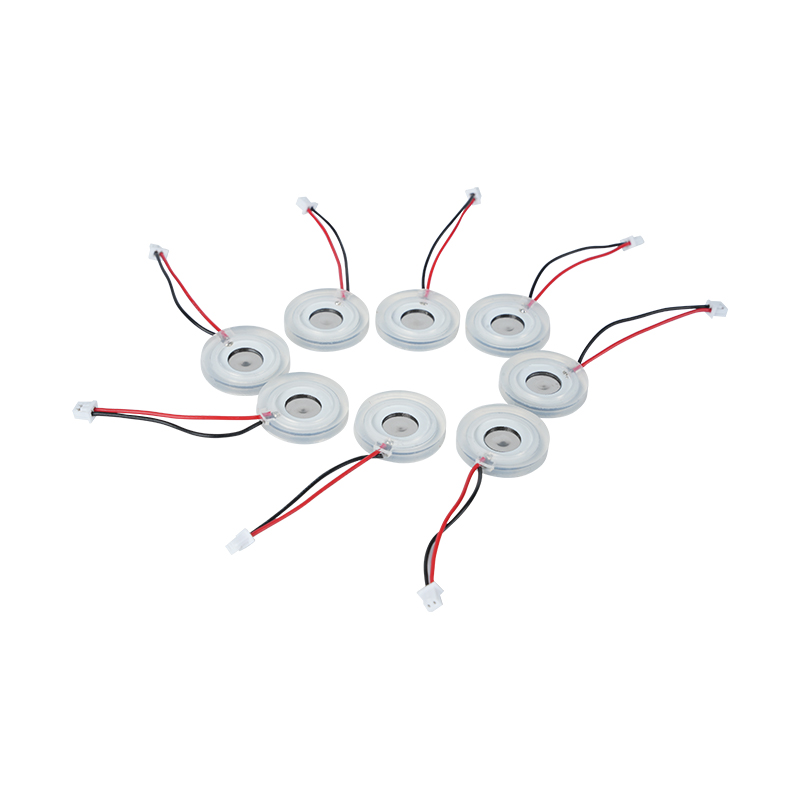

Φ16mm Microporous Atomizing Sheet Piezo Ceramic Large Fog Volume Heater Disc Diffuser Spray Hole Sheet Mesh Atomizing Disc is an important core component used for air humidification and atomization heating equipment. The microporous design with a diameter of 16 mm can finely atomize the moisture into tiny water droplets to form a uniform atomization effect. Driven by highly efficient piezoelectric ceramic material, it is converted into mechanical vibration by electrical energy to stimulate the generation of water mist, providing stable and efficient atomization performance. The design of the spray hole sheet of the atomizing disk has a grid structure, which ensures an even distribution of water mist. Suitable for equipment such as large mist volume heaters, it can enhance air humidity and effectively regulate indoor temperature. Fogging discs are widely used in home, office, and industrial environments.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 16-110KSDG170P4.2 | Φ16*0.05 | Φ16*Φ7.8*0.6 | Cylindrical / Convex | 110k±10 | ＜200 | 3000 | 3.0-24V | 1.5±0.5 | 7 | 1700 | 4.0 ± 0.5 | 4 | 2.2 | Heater Micro Mesh Sprayer |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
