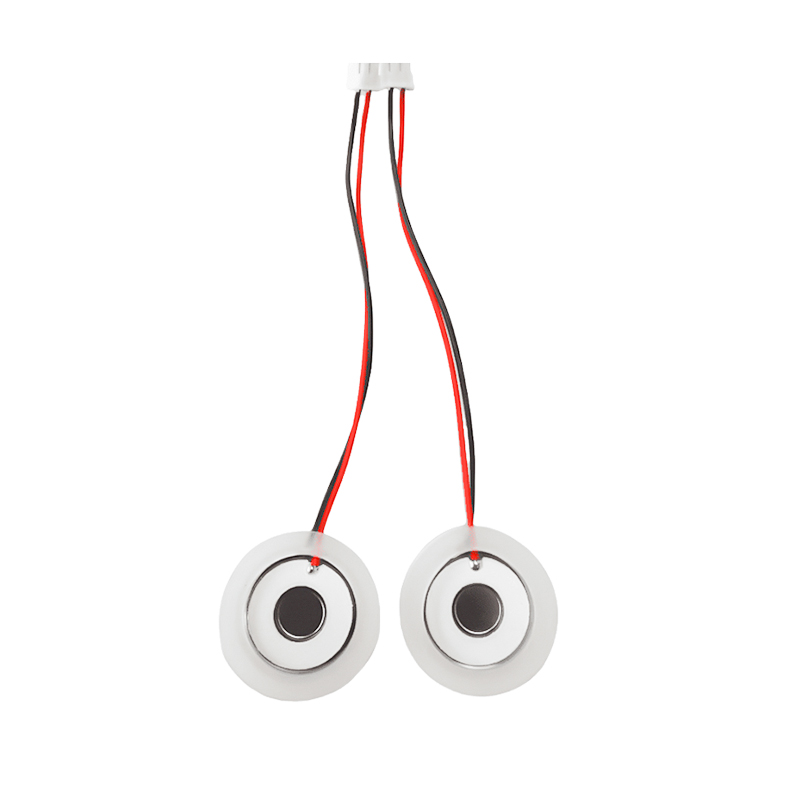

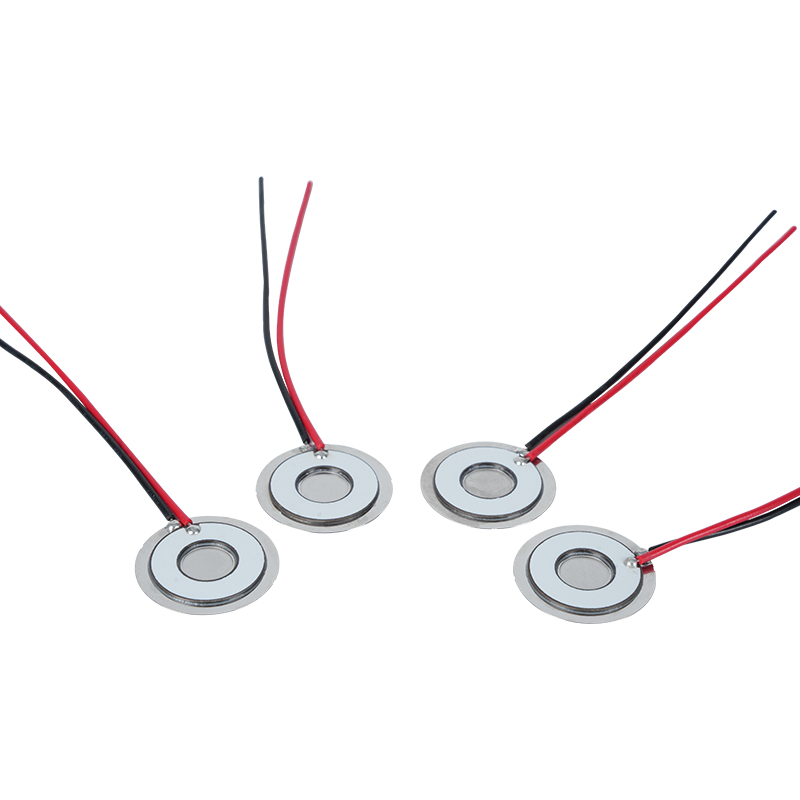

M20-95K Mesh Fogging Plate Grid Fogging Disc is a high-efficiency fogging disc designed for air conditioner chillers, refrigerator freshness and humidification equipment, with a diameter of 20mm Nissan SUS304 stainless steel, using advanced grid fogging technology to efficiently produce a fine mist. The maximum atomization volume can exceed 1500ml/h, ensuring the provision of strong and uniform humidity output, effectively increasing air humidity. With an excellent atomization effect and long service life, the atomizing disc can be widely used in air-conditioning systems, chillers and refrigerator preservation devices in homes and offices. Through the atomization technology, it can quickly and effectively reduce the temperature, keep food fresh and improve air quality, which is the choice to enhance the performance of the equipment and air comfort.M20-95K atomizing discs have a simple design and are easy to install and clean, which ensures that users can use them conveniently.
Equal sizes of steel and ceramic chips increase the atomization volume to the extreme. The widening of the center area increases the number of micropores even more, which will increase the maximum atomization volume in a limited area. The product can be customized according to the customer's requirements for atomization volume and granularity.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 20-95KSDM600P6.0 | Φ20*0.15 | Φ20*Φ10*0.6 | Drum | 95k±10 | ＜150 | 5000 | 3.0-24V | 2.0±0.5 | 13 | 6000 | 5.5 ± 1.0 | 30 | 2.8 | Heater Micro Mesh Sprayer |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
