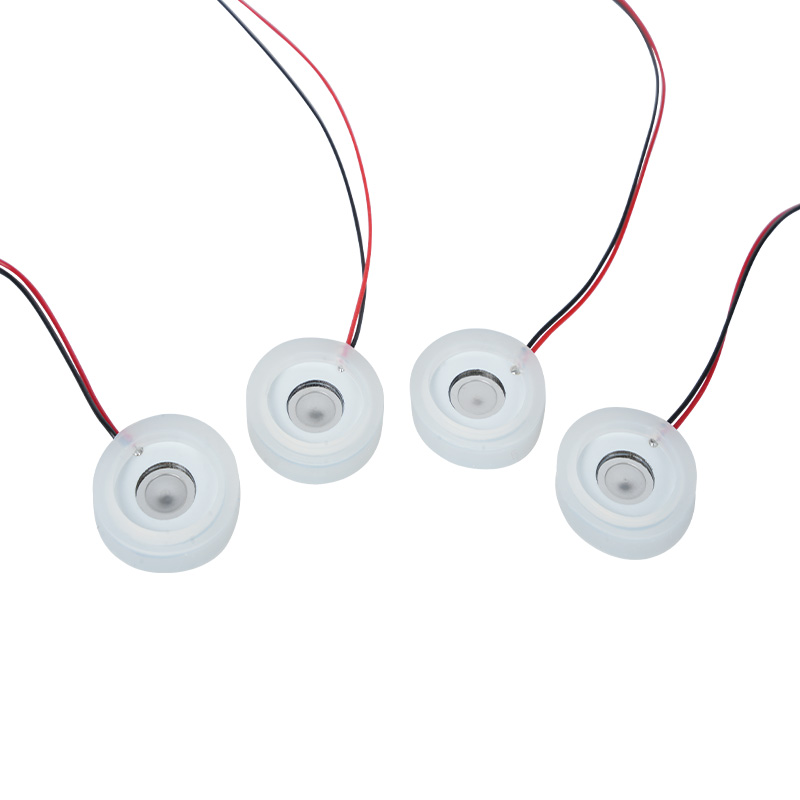

Φ20mm air conditioning condensate humidification fruit and vegetable humidification and cleaning large spray atomization disc is a high-efficiency atomization element, using Φ20mm 304 stainless steel mesh design, can achieve large atomization volume and high efficiency of the atomization effect. Mainly used in air conditioning condensate humidification, fruit and vegetable cleaning humidification cleaning and other fields, can quickly convert water into fine or coarse atomized particles, evenly distributed in the air, as well as the surface of the product to form a rinse and atomization function. The characteristics of the large spray volume make it more significant in the flushing humidification effect, can effectively prevent the dry environment on the air and the adverse effects caused by the goods, especially suitable for greenhouse, fruit and vegetable preservation, air humidification and other occasions. Fogging disk work is stable, easy to use, can greatly improve the air humidity and water supply, effectively avoids the use of air conditioning caused by the dry discomfort and rapid draining of water caused by objects dry cracks and fruits and vegetables lose water, and can effectively reduce the dry air caused by static electricity, dust caused by the damage to the equipment and instruments.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 20-95KSDM600P6.0 | Φ20*0.15 | Φ20*Φ10*0.6 | Drum | 95k±10 | ＜150 | 5000 | 3.0-24V | 2.0±0.5 | 13 | 6000 | 5.5 ± 1.0 | 30 | 2.8 | Heater Micro Mesh Sprayer |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
