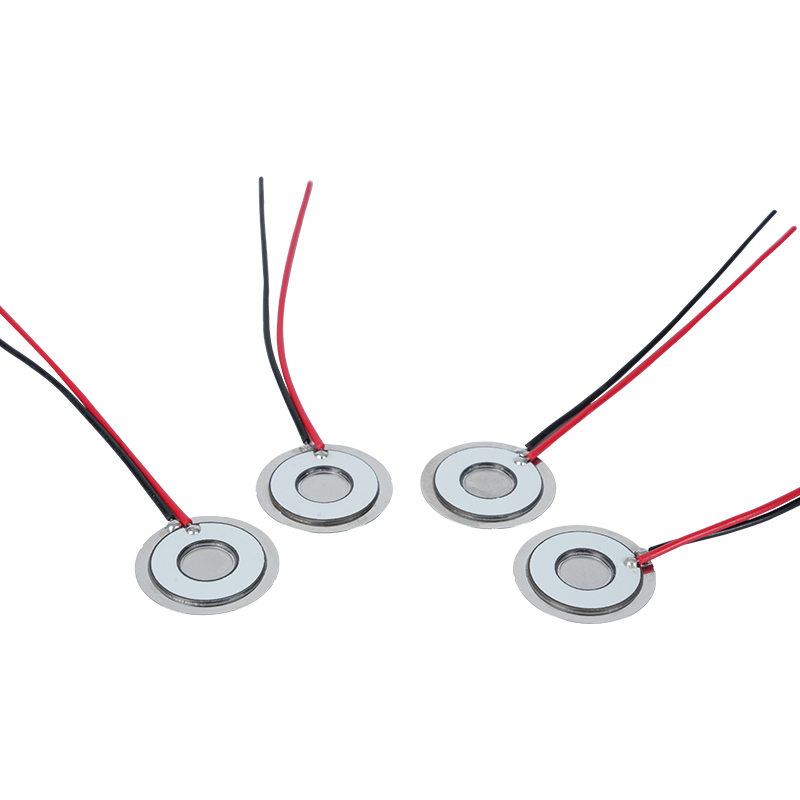

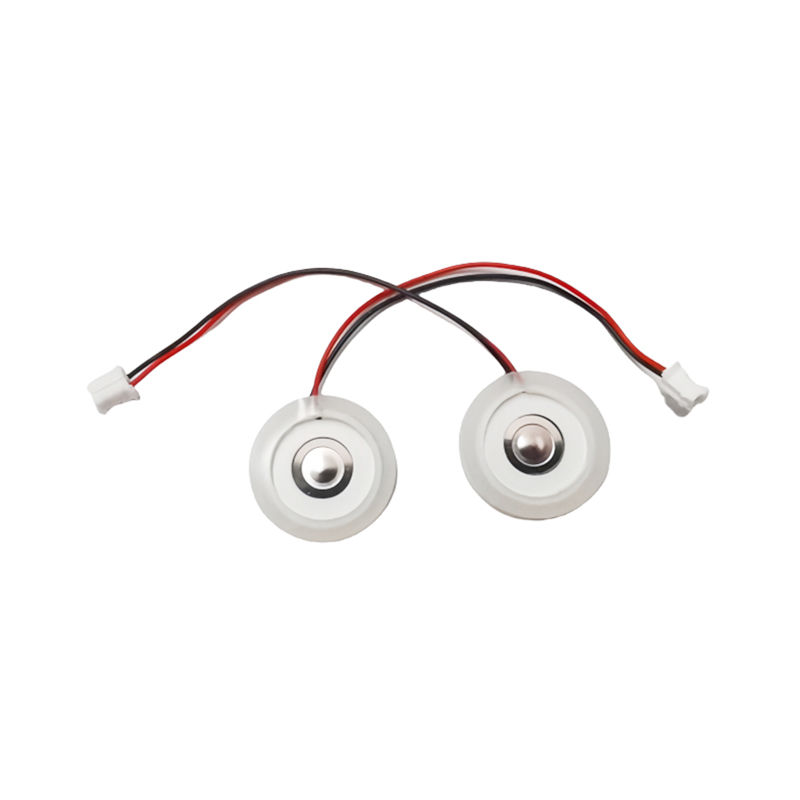

M20-111 Mesh Fogging Disc is a high-efficiency fogging disc specially designed for washing machines, chillers, refrigerators, and humidification systems, with excellent fogging performance. The atomizing disc Φ for 20mm thickness of 0.15mm, the use of advanced precision laser technology for grid structure design, the use of ultrasonic vibration energy conversion to quickly break up the liquid into particles of water mist, atomization rate of up to 800ml / h or more, to play a role in the object to wash the role of washing. Mainly used in washing machine spray liquid, air conditioning condensate extraction, fruit and vegetable cleaning, crop spray, play a clean, rinse function. For refrigerator preservation, the M20-111 misting disk can effectively maintain the freshness of food, reduce the loss of moisture, and extend the storage period. It can release a large amount of water mist in a short period of time to increase air humidity and prevent air from drying out.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 20-111KSDM90P5.0 | Φ20*0.15 | Φ16*Φ7.8*0.6 | Depending On Specific Requirements | 111k±10 | ＜150 | 5000 | 3.0-24V | 2.0±0.5 | 13 | 900 | 5.5 ± 1.0 | 10 | 2.8 | Heater Micro Mesh Sprayer |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
