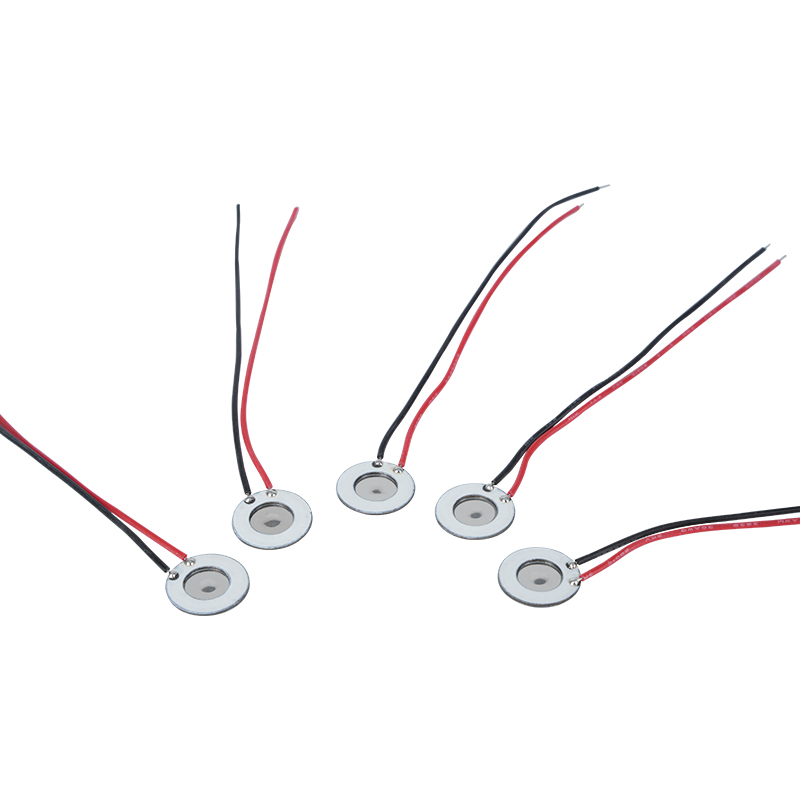

10mm Stainless Steel Microporous Atomizer Disc is a highly efficient atomizer accessory widely used in many fields such as beauty care, hydration, perfumed water spray, oral care, and so on. The atomizer disc is made of high-quality stainless steel material from Japan, with the precision machined surface, possessing a very small pore size, which can efficiently atomize the liquid into a fine water mist to ensure the atomization effect is even and delicate. It is often used in beauty equipment to evenly spray moisture or nutritional liquid on the skin surface to help improve skin absorption; in oral care, it can be used to spray fresh breath or oral disinfectant to enhance the oral cleaning effect. Atomizer tablets can be used in perfume spraying, air humidification, and other fields.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 10-160KSDG54P2.5 | Φ10*0.05 | Φ10*Φ5.0*0.6 | Cylindrical / Convex | 160k±10 | ＜300 | 1500 | 3.0-5.0 | 1.25±0.3 | 7 | 540 | 2.5 ± 0.5 | 1 | 1.5 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
