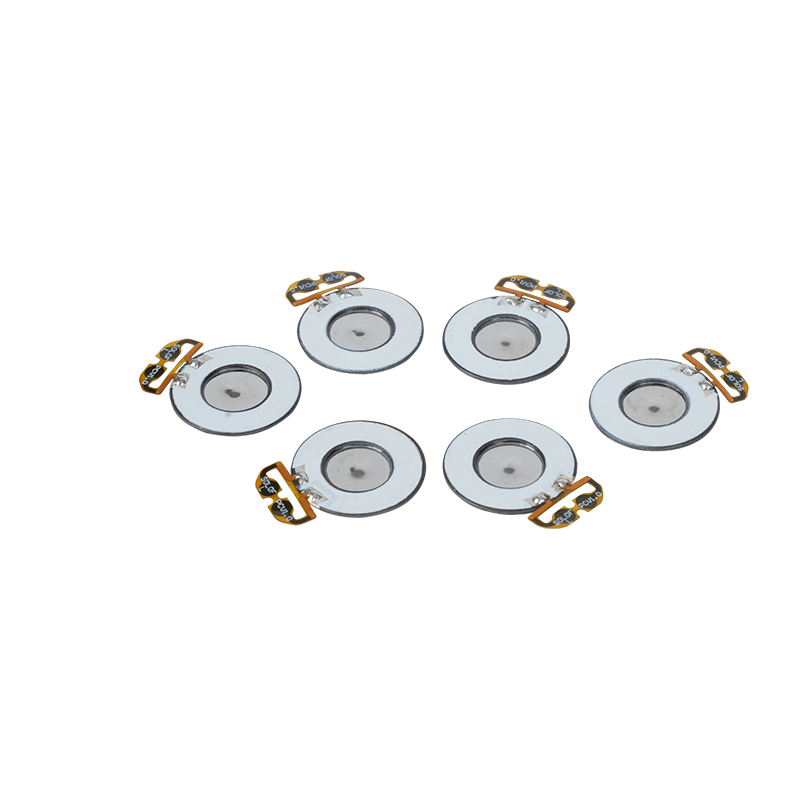

KNN16-140K Lead-Free Stainless Steel Mesh Medical Inhalable Nebulizer Tablet is a high-performance nebulizer tablet designed for medical nebulizers. The nebulizer tablet is made of KNN lead-free piezoelectric sheet + high-quality 316L stainless steel, which provides excellent corrosion resistance and safety, and meets the strict requirements of modern medical equipment.
The customized nebulizing rate is 0.30ml/min, which can achieve a stable nebulizing effect and is suitable for different patients' needs. The median particle size of the nebulizer tablet is 3.5um, which can effectively refine the drug particles to a tiny size suitable for inhalation, improving the absorption efficiency and therapeutic effect of the drug. The design of the welded wire models can be customized according to the length of the customer's product needs, the nebulizer disc production is very flexible and adaptable to ensure the reliability of the product installation with its stability and durability.
Nebulization rate and particle size can be adjusted, able to personalize the settings according to specific therapeutic needs. Nebulizer tablets are widely used in the treatment of respiratory diseases, especially suitable for patients who need precise drug nebulization treatment.
- Customized Atomization Rate 0.30ml/min
- Median Particle Size 3.5um
- Welded wire models for medical nebulizers, nebulization rate adjustable particles adjustable
The European Union has been racking its brains over the issue of lead and the green future of the entire planet but has always had a special exemption policy for piezoelectric products containing lead, such as buzzer chips. However, the lead-free products placed unlimited hope, and a thousand calls, today the lead-free piezoelectric sheet can finally be mass production.
Lead-free piezoelectric ceramics have been known as the piezoelectric industry, “the jewel in the crown”, and will set off a piece of the piezoelectric industry, the green revolution, lead-free piezoelectric ceramics will eventually gradually replace the lead-based piezoelectric ceramics in all aspects, especially in the food and medical industry is the most advanced. Therefore, all the major piezoelectric industries have been studying and testing it, we have been the first to successfully develop the lead-free medical Mesh micro-network atomizer after several years of hard work. KNN lead-free piezoelectricity, which already has the same piezoelectric performance as the lead-based piezoelectric sheet and is completely non-toxic, harmless, safe, environmentally friendly, and free of lead, antimony, and other heavy metals and other Rohs-restricted elements, high Curie Temp. (high Curie temperature Tc-328℃, very low electric loss TangentLoss<1.5%). It is a very joyful thing that it has completely replaced the lead-based piezoelectric ceramic nebulizer sheet. Lead-free piezoelectric medical atomizer chip has great commercial value and universal value, truly non-toxic and environmentally friendly, lead-free piezoelectric ceramics in addition to non-polluting security features, and with lead-based ceramics commensurate with the piezoelectric performance, will become a popular and reliable environmentally friendly high-quality atomizer chip.
Our company after many years of research and development, after continuous testing and experimentation, has successfully lead-free medical atomizer chip and lead-based atomizer chip, lead-free medical Mesh atomizer chip, will shine, and will be widely used. Our company is committed to the main research direction of the medical nebulizer chip, the R & D team is the lead-free piezoelectric chip, PI film medical nebulizer chip fusion as the company's top priority research direction, we will be precise 2 ~ 3um stainless steel cast hole technology and lead-free piezoelectric chip, polymer PI film to closely match together to improve the nebulization effect, but also to enhance the true environmental protection of the true experience, which is a medical nebulizer chip and more! The medical nebulizer chip has a good performance, lead-free, harmless, and safer nebulizer products, our products ensure efficient atomization at the same time, while greatly reducing the potential harm to the user and the environment.
The same amount of atomization, the same particle size requirements, and the integration of lead-free and PI, but also the medical nebulizer chip to a high level of high-quality era.
Our lead-free piezoelectric medical nebulizer chip can still maintain high efficiency and stable performance after a long time of use, which greatly extends the service life of the product. With the convenience and portability of medical nebulizers, patients can easily enjoy high-quality nebulized treatments whether at home or on the go. These efforts are aimed at providing patients with safer, more efficient, and convenient medical inhalation nebulizer solutions.
Our new product size currently has two categories: 16-130KHZ and 13.8-165KHZ two varieties.
