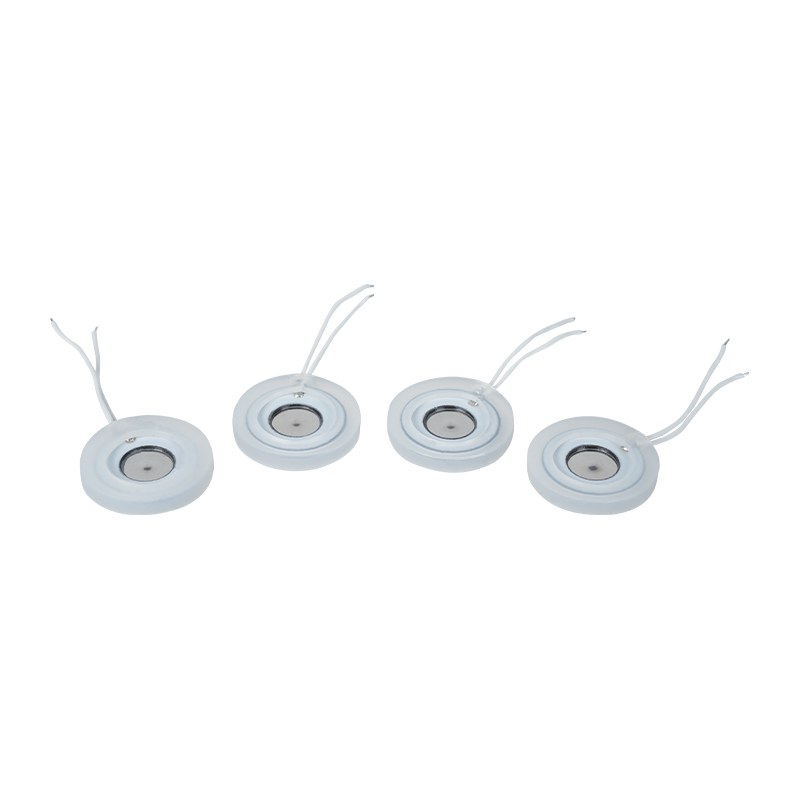

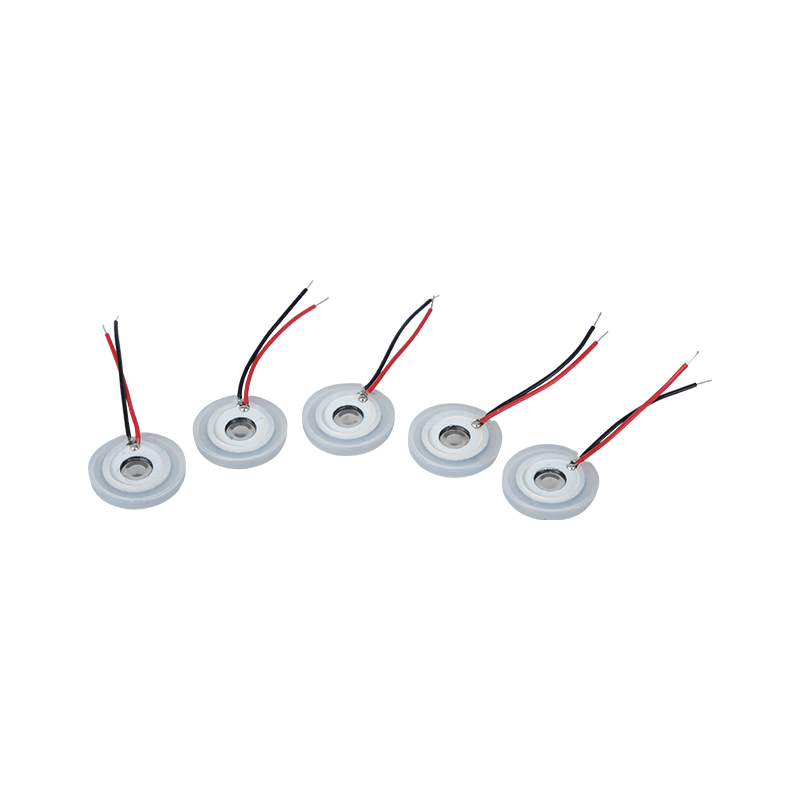

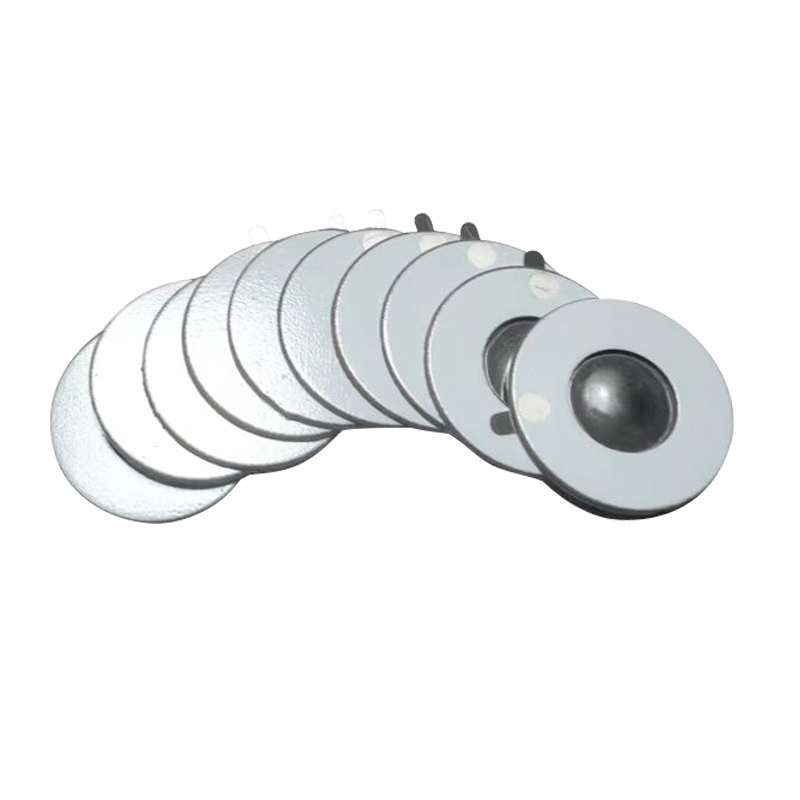

The M16-140K Lead-Free Mesh Medical Inhalable Nebulizer Tablet is a highly effective nebulizing device designed for the medical field. Its unique Mesh technology is manufactured with KNN-series lead-free materials to ensure safety and environmental friendliness during the nebulization process. With a customized nebulization rate of 0.30ml/min, the nebulizer tablet is able to accurately control the amount of medication nebulized to ensure effective inhalation of the medication. The D50 percentage of the nebulizer tablet is more than 60%, which means that the median diameter of the nebulized particles is small. the MMAD (median particle size) is less than 4.5μm, which ensures the fineness and stability of the nebulized particles and is able to maximize the inhalation efficiency. The spray holes of the nebulizer discs are finely optimized by advanced laser technology, which can nebulize the medicine uniformly and efficiently to ensure even distribution of the medicine in the treatment process. Due to the environmental protection and safety of lead-free ceramics, it will be more closely used in medical nebulizers, which will be suitable for all kinds of respiratory diseases, and we will provide customized nebulizers for your needs. We will provide customized nebulizer for your needs.
- Atomization Rate: 0.30ml/min
- MMAD ＜5μm Percentage＞60
- Customizable atomization volume and MMAD
- Default Enameled Wire L=30mm
The European Union has been racking its brains over the issue of lead and the green future of the entire planet but has always had a special exemption policy for piezoelectric products containing lead, such as buzzer chips. However, the lead-free products placed unlimited hope, and a thousand calls, today the lead-free piezoelectric sheet can finally be mass production.
Lead-free piezoelectric ceramics have been known as the piezoelectric industry, “the jewel in the crown”, and will set off a piece of the piezoelectric industry, the green revolution, lead-free piezoelectric ceramics will eventually gradually replace the lead-based piezoelectric ceramics in all aspects, especially in the food and medical industry is the most advanced. Therefore, all the major piezoelectric industries have been studying and testing it, we have been the first to successfully develop the lead-free medical Mesh micro-network atomizer after several years of hard work. KNN lead-free piezoelectricity, which already has the same piezoelectric performance as the lead-based piezoelectric sheet and is completely non-toxic, harmless, safe, environmentally friendly, and free of lead, antimony, and other heavy metals and other Rohs-restricted elements, high Curie Temp. (high Curie temperature Tc-328℃, very low electric loss TangentLoss<1.5%). It is a very joyful thing that it has completely replaced the lead-based piezoelectric ceramic nebulizer sheet. Lead-free piezoelectric medical atomizer chip has great commercial value and universal value, truly non-toxic and environmentally friendly, lead-free piezoelectric ceramics in addition to non-polluting security features, and with lead-based ceramics commensurate with the piezoelectric performance, will become a popular and reliable environmentally friendly high-quality atomizer chip.
Our company after many years of research and development, after continuous testing and experimentation, has successfully lead-free medical atomizer chip and lead-based atomizer chip, lead-free medical Mesh atomizer chip, will shine, and will be widely used. Our company is committed to the main research direction of the medical nebulizer chip, the R & D team is the lead-free piezoelectric chip, PI film medical nebulizer chip fusion as the company's top priority research direction, we will be precise 2 ~ 3um stainless steel cast hole technology and lead-free piezoelectric chip, polymer PI film to closely match together to improve the nebulization effect, but also to enhance the true environmental protection of the true experience, which is a medical nebulizer chip and more! The medical nebulizer chip has a good performance, lead-free, harmless, and safer nebulizer products, our products ensure efficient atomization at the same time, while greatly reducing the potential harm to the user and the environment.
The same amount of atomization, the same particle size requirements, and the integration of lead-free and PI, but also the medical nebulizer chip to a high level of high-quality era.
Our lead-free piezoelectric medical nebulizer chip can still maintain high efficiency and stable performance after a long time of use, which greatly extends the service life of the product. With the convenience and portability of medical nebulizers, patients can easily enjoy high-quality nebulized treatments whether at home or on the go. These efforts are aimed at providing patients with safer, more efficient, and convenient medical inhalation nebulizer solutions.
Our new product size currently has two categories: 16-130KHZ and 13.8-165KHZ two varieties.
