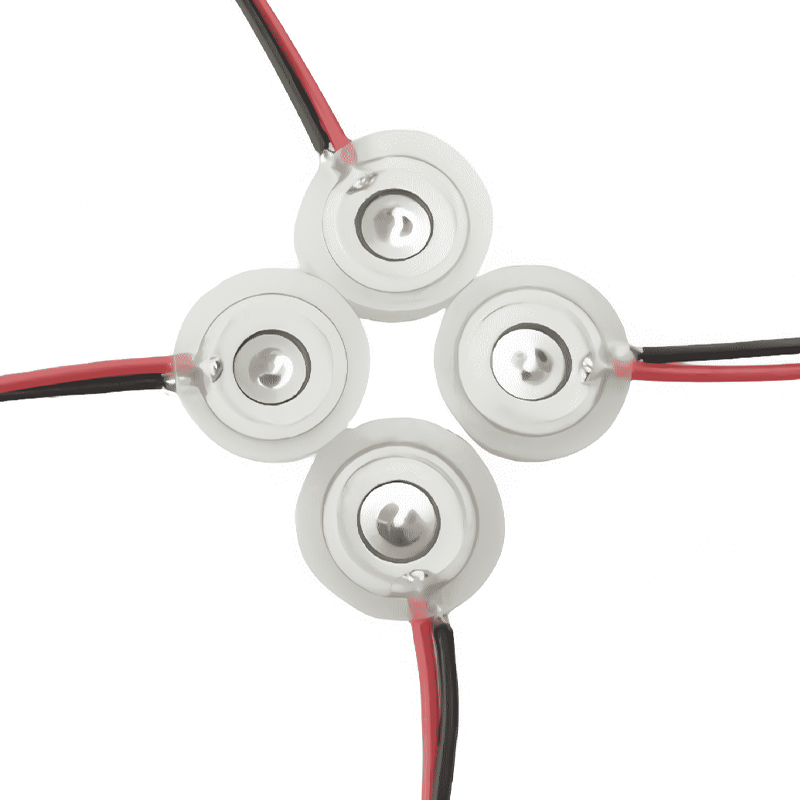

16mm Microporous Atomizing Tablet Mouth Spray Fresh Atomizing technology is a highly efficient way to purify and freshen the air, using advanced microporous atomizing technology, which is able to rapidly atomize liquids into microscopically fine water mist particles through high-frequency oscillation. These tiny water mists form a uniform atomized layer in the air, which can effectively remove dust, odor, bacteria, and other harmful substances in the air while releasing a fresh scent. 16mm atomizing piece design makes the spray effect more delicate, with a wide coverage, which can quickly penetrate every corner. The technology is widely used in the home, office, car, public places, and other environments, and can enhance the air freshness, with the function of moisturizing the air and increasing humidity, especially suitable for the dry season.
| Model Number Size/Frequency/Model |
Diameter*Inner Diameter*Thickness | Electrical Parameter | Process Parameter | |||||||||||
| Stainless Steel Sheets304/316 | Piezoelectric Ceramics | Bump Specification | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Aperture | Number OF Punched Holes ( about ) |
Perforated Area | Atomization Volume | Price Of Item | Categorization | |
| (mm) | (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | (µm) | (PCS) | Φ | (ml/min) | ＄ | |||
| 16-110KSDH350P3.8 | Φ16*0.05 | Φ16*Φ7.8*0.6 | Cylindrical / Convex | 110k±10 | ＜200 | 3000 | 3.0-24V | 1.5±0.5 | 8 | 3500 | 4.0 ± 0.5 | 20 | 2.2 | Fan Humidifying Beauty Misting Tablet |
With its high energy efficiency, low noise, and long service life, the stainless steel micro mesh fogging sheet effectively improves humidification efficiency and reduces water consumption at the same time by refining water molecules into tiny water mist. The use of micromesh fogging tablets also reduces pollution to the environment, as it does not require the use of chemical additives or heating to achieve the desired humidification effect. The performance of micromesh atomizing tablets is improving, making humidifiers more intelligent and user-friendly.
The company produces products mainly for high-quality customers to carry out, does not do low-end residual products, production according to the quality system requirements, and medical nebulizer tablets production process requirements for production and strict implementation. Regardless of which products in our company are strictly regulated production according to quality requirements. Each production channel is tested according to the testing standards so that customers are satisfied with the product. All materials are of high-quality selection, precision technology, refusing inferior residual.
