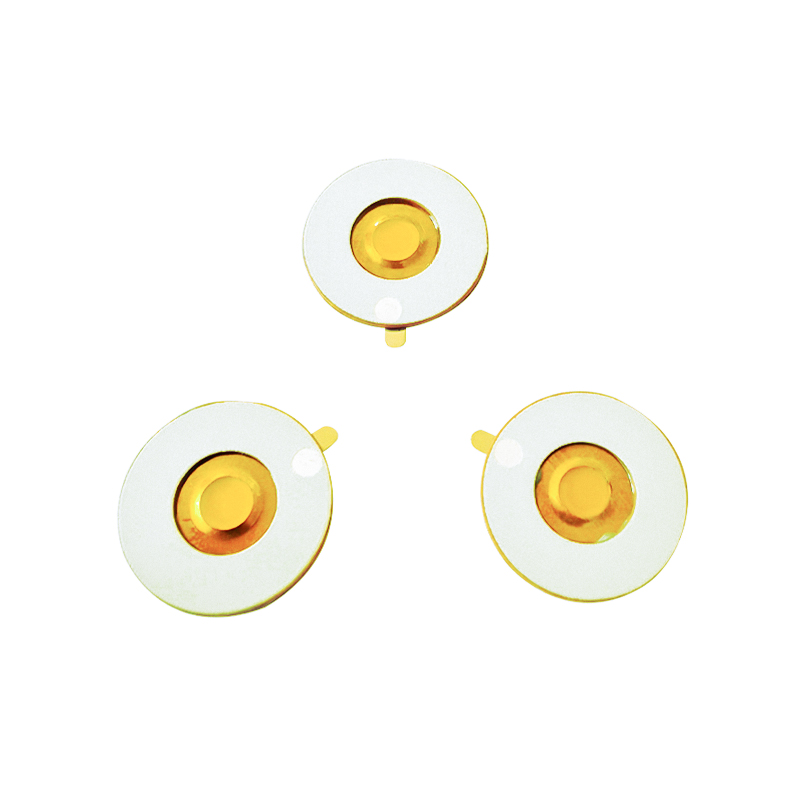

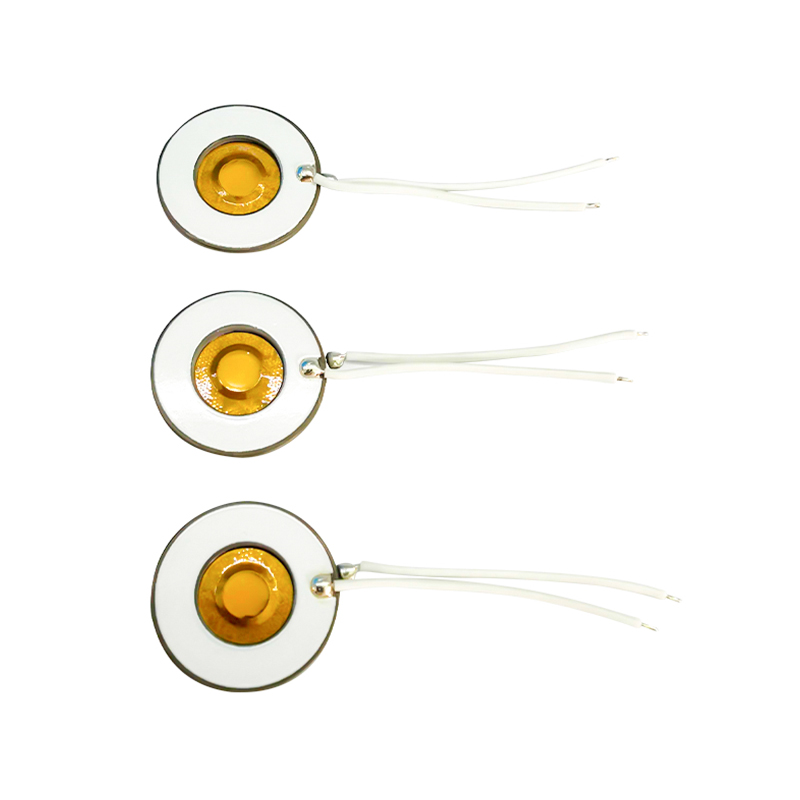

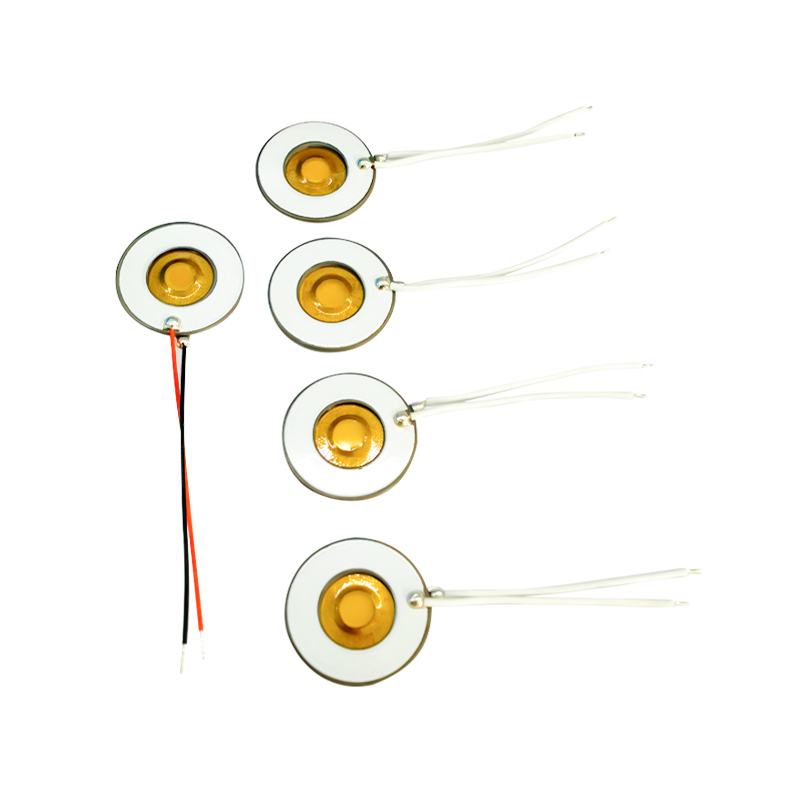

M16-110KHZ Polyimide (PI) Membrane Mesh Micro Mesh Nebulizer Medical Nebulizer is a highly efficient ultrasonic mesh nebulizer designed for drug nebulization inhalation. The nebulizer disc is made of 316L stainless steel as the base material, and the mesh is laser mesh with polyimide (PI) membrane material, which has excellent high temperature and corrosion resistance to ensure stability and reliability in long-term use. Ultrasonic mesh technology converts liquid medication into tiny droplets through high-frequency vibration, and the particle size can be precisely controlled at about 3μm, which can effectively enter the deeper layers of the respiratory tract and enhance the absorption of the medication. The unique design of the M16-110KHZ nebulizer makes it suitable for the treatment of a variety of respiratory disorders, such as asthma, Chronic Obstructive Pulmonary Disease (COPD), etc. and provides a more precise and faster nebulization Treatment. The nebulizer disc adopts advanced laser microporous technology to ensure the uniform control of MESH microporous, which makes the nebulized particles uniform and fine and is widely used in hospitals, essential medical nebulizers at home, and various medical environments.
16-108K MMAD＜4μm
Atomization Rate＞0.25ml/min
Polyimide (Polyimide) referred to as PI, is the best comprehensive performance of organic polymer materials, it has chemical stability and can withstand the corrosion of a variety of drugs, to ensure the long-term use of atomized tablets performance. Polymer PI membrane also has excellent thermal stability, long-term use temperature range -200~300°C, high insulation, environmental protection and non-toxicity, as a special engineering materials, widely used in aerospace microelectronics nano-liquid crystal separation membranes and other fields, it is not easy to be deformed in the process of high-temperature disinfection, to ensure that the product is reusable and safe, we use the laser technology for laser perforation of the PI We use laser technology to laser punch it, implant the PI film into the stainless steel and piezoelectric sheet between the use of piezoelectric ceramic ultrasonic technology so that the atomized liquid droplets through the PI film into 3 ~ 4μm atomized particles, used for medical nebulizer inhalation, the safety of the majority of users love, the main advantages of the nebulizer made of PI is not clogged, smooth and rounded inside the wall of the hole, the liquid is not residual, atomization is delicate and stable.
PI membrane nebulizer tablets can effectively prevent drug residues and reduce the risk of cross-contamination. The low energy consumption characteristics of polymer PI membrane nebulizer sheet are also reflected, PI membrane medical nebulizer sheet has low power consumption characteristics, prolonging the service life of the equipment. In the design, we use imported 316L material and a precise manufacturing process to ensure the high precision and consistency of our products. Our products have passed a number of international quality certifications and are widely recognized in the medical industry. In practical applications, PI film nebulizer sheets show excellent stability and durability. Whether it is a long period of continuous or intermittent work, its performance can be maintained at a stable level, and there is no significant performance degradation due to the increase in use time. This makes our PI film nebulizer sheets the first choice of many medical device manufacturers. In order to meet the needs of different customers, we are also continuously developing new categories of PI film nebulizer sheets. We believe that our PI film nebulizer sheets will play a more important role in the medical field in future development. We also look forward to working with more partners to jointly promote the development of medical technology.
