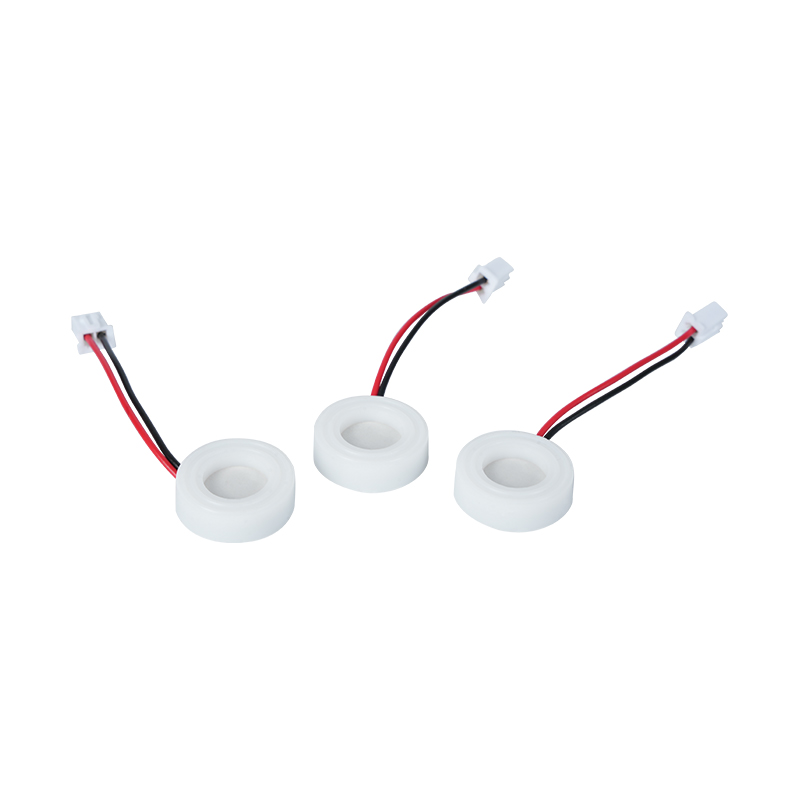

20MM 1.7MHz Ultrasonic Piezoelectric Ceramic Humidifier Aromatherapy Diffuser Essential Oil Misting Chip is a highly efficient and intelligent air purification device, widely used for humidification, aromatherapy, misting and other functions. Its core component is an ultrasonic piezoelectric ceramic transducer wafer with a diameter of 20mm and a frequency of 1.7MHz, which is capable of generating micro-fine water mist or essential oil mist through high-frequency oscillation. The piezoelectric ceramic wafer is made of advanced piezoelectric material with high energy conversion efficiency and stability, which can maintain an excellent atomization effect under long-time operation. Ultrasonic technology makes the atomization process no noise, no heat source, safer and more environmentally friendly, and can effectively avoid the traditional humidifier water pollution problems. Suitable for home, office, nursing home, and other places.
| Model Size/Frequency/Model |
Diameter*Inner diameter*Thickness | Electrical Parameter | Water Level | Water Temperature | Process Parameter | |||||||||
| Piezoelectric Sheet Physical Dimensions | Resonant Frequency | Resonant Resistor | Electrostatic Capacitance | Usage Voltage |
Usage Power |
Water Quality | Atomization Volume | Electrode | Protective Body | Welding Tension | Categorization | |||
| (mm) | （KHz） | (Ω) | (pf)±20% | DC（V） | W | MM | ℃ | (ml/min) | ＄ | N | ||||
| SD20-1.7M | Φ20/1.23±0.03 | 110k±10 | Max:2 | 3000 | 3.0-24V | 1.5±0.5 | 30-35 | 20-50 | Drinking Water purified water |
＞200 | Ag | Vitreous Glaze | MIN：20 | Ultrasonic High Frequency Nebulizer Tablets |
Ultrasonic atomizer is a device that uses the principle of ultrasonic vibration (energy conversion) to convert liquid into tiny droplets.
The working principle is the piezoelectric ceramics' unique piezoelectric properties of the decision, the atomization piece in the receipt of matching electric field signal excitation will produce the corresponding oscillation frequency, through the role of high-frequency vibration of the liquid cavitation thrown away from the surface of the water to produce a kind of floating water mist particles, atomized with a large number of negative ions and small particles of molecules, can achieve increased environmental humidity, the role of fresh air.
The surface of the atomizer is coated with vitreous enamel at a high temperature of 800 degrees to protect the silver electrodes of the piezoelectric sheet, increase the acid and alkali resistance and oxidation resistance of the atomizer, and increase the service life of the atomizer.
Widely used in indoor humidifiers, air purifiers, medical nebulizer treatment and beauty care, and other fields, but also suitable for warehouses, factories, humidification, and disinfection, to create the atmosphere of humidification equipment. Fogging tablets are mainly used in industrial humidification, medical fogging, aromatherapy fogging, environmental humidification, garden fogging and other scenes. Ultrasonic atomizing film has the advantages of stable performance, low noise, low energy consumption, long service life, etc. It is an indispensable part of modern atomization technology.
1. efficient atomization performance, can quickly convert liquid into fine droplets, improve the efficiency of drug or aromatherapy, humidification atomization.
2. small power consumption, quiet, providing users with a more tranquil use of the environment.
3. made of high-quality P4 material formula, high density, the advantages of small media loss, atomizer surface coating corrosion-resistant vitreous enamel, to ensure that the life of more than 5000 hours.
4. the size of the atomizing sheet has Φ16 Φ20 Φ25 Φ30mm atomizing sheet of various frequencies, to meet the different space sizes and different needs of the scene users.
5. Customized service, can be designed and produced according to the specific needs of customers, to provide personalized solutions.
6. Wide applicability, whether it is the home humidifier, medical nebulizer, or industrial humidification equipment, can perform well, there are aroma machines, aromatherapy machines, flame fireplace landscape humidifiers, and so on.
